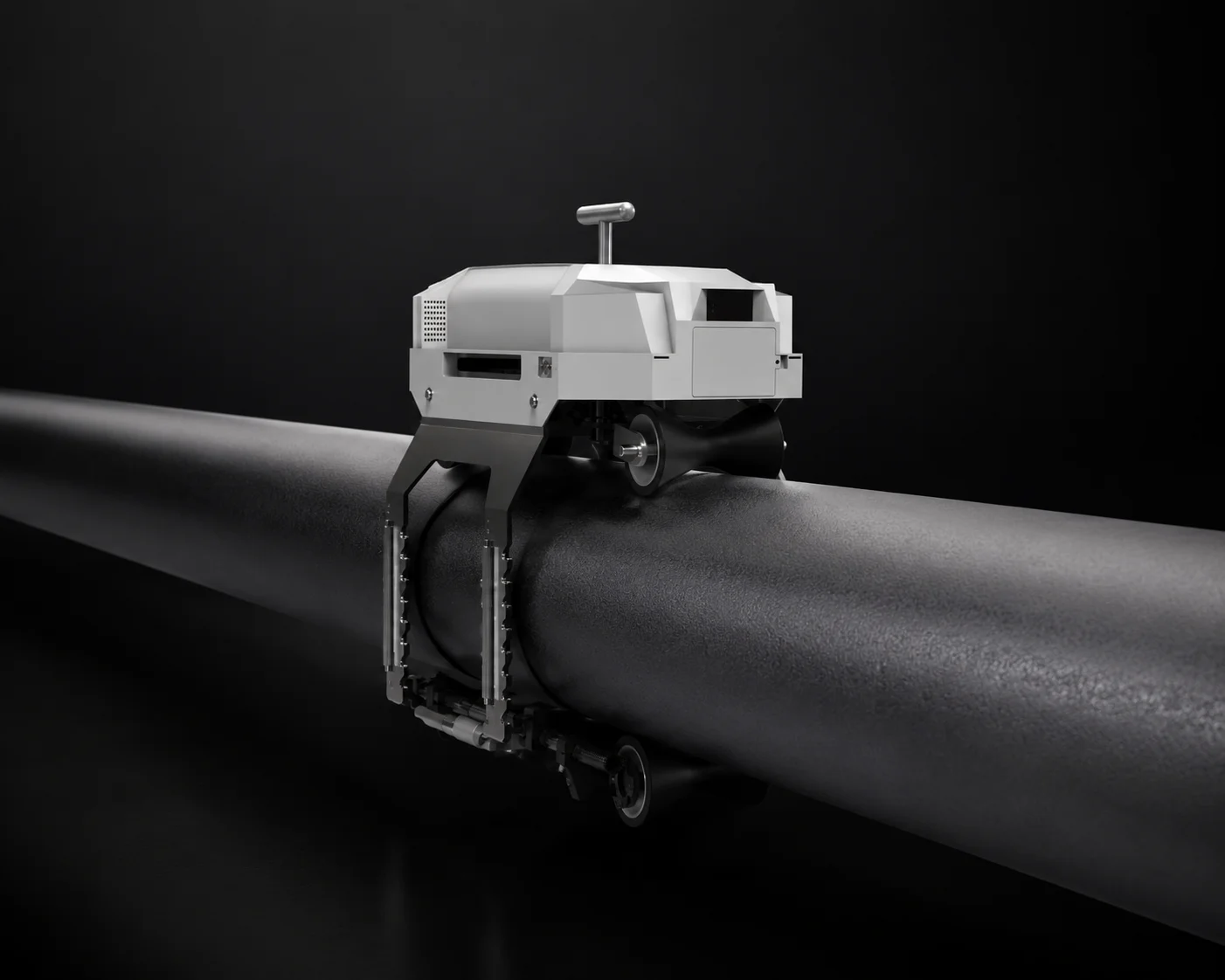

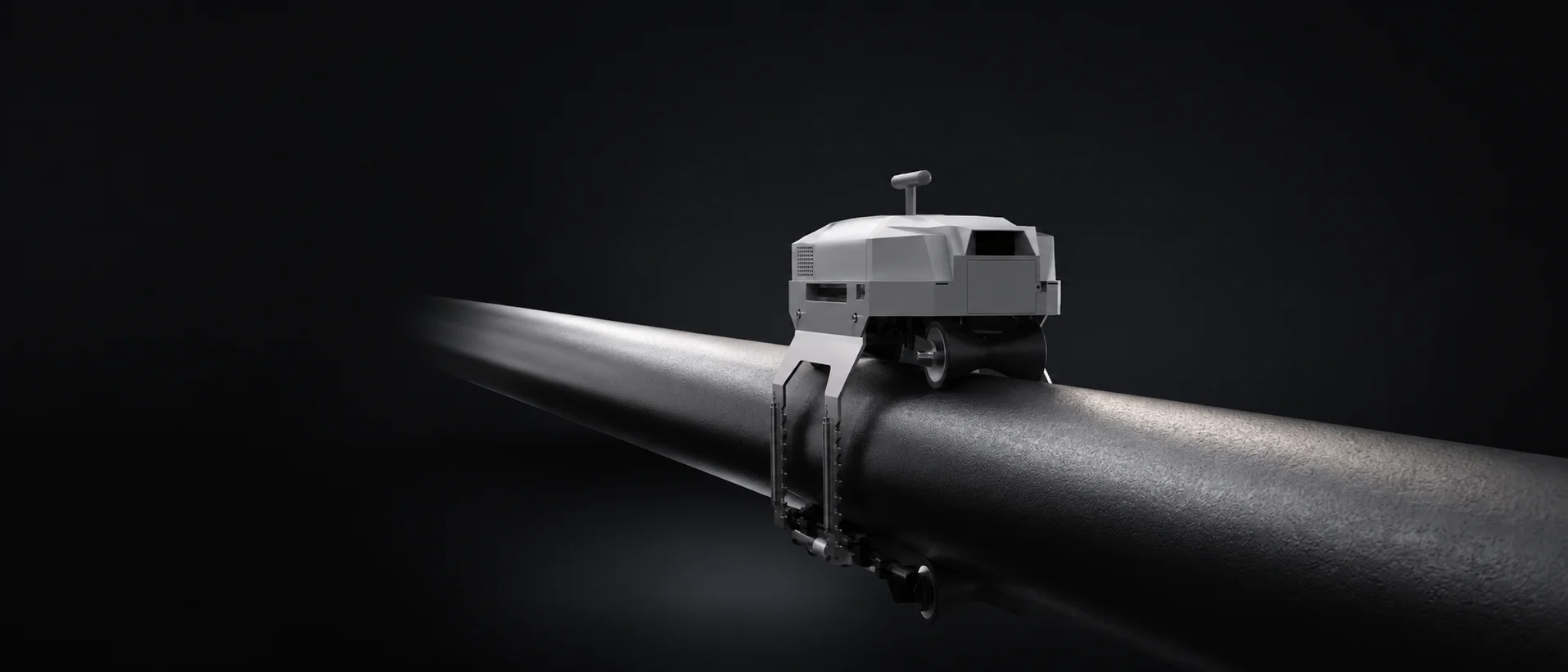

Bridge Cable-Stayed Inspection Robot
Automatically detects defects on long-span cable-stayed bridge cables. Equipped with high-definition industrial cameras and sensors to capture, identify, and analyze cable surface health remotely, enabling efficient detection of early defects such as PE sheath cracking. It replaces manual high-altitude work, solving the issues of low efficiency and high risk in traditional inspection.
Functions
Surface Defect Inspection
Precise positioning and image capture of cable surface defects, outputting data for surface maintenance decision-making.
Internal Defect Inspection
Precision non-destructive positioning of structural defects, outputting data for internal structural maintenance decision-making.
Product Parameters
Weight
15 kg
Dimensions
1200 × 600 × 300 mm
Applicable Angle
0° – 90°
Applicable Diameter
90 – 260 mm
Control Range
1 km
Max Speed
18 m/min
Endurance
2 h
Application Cases

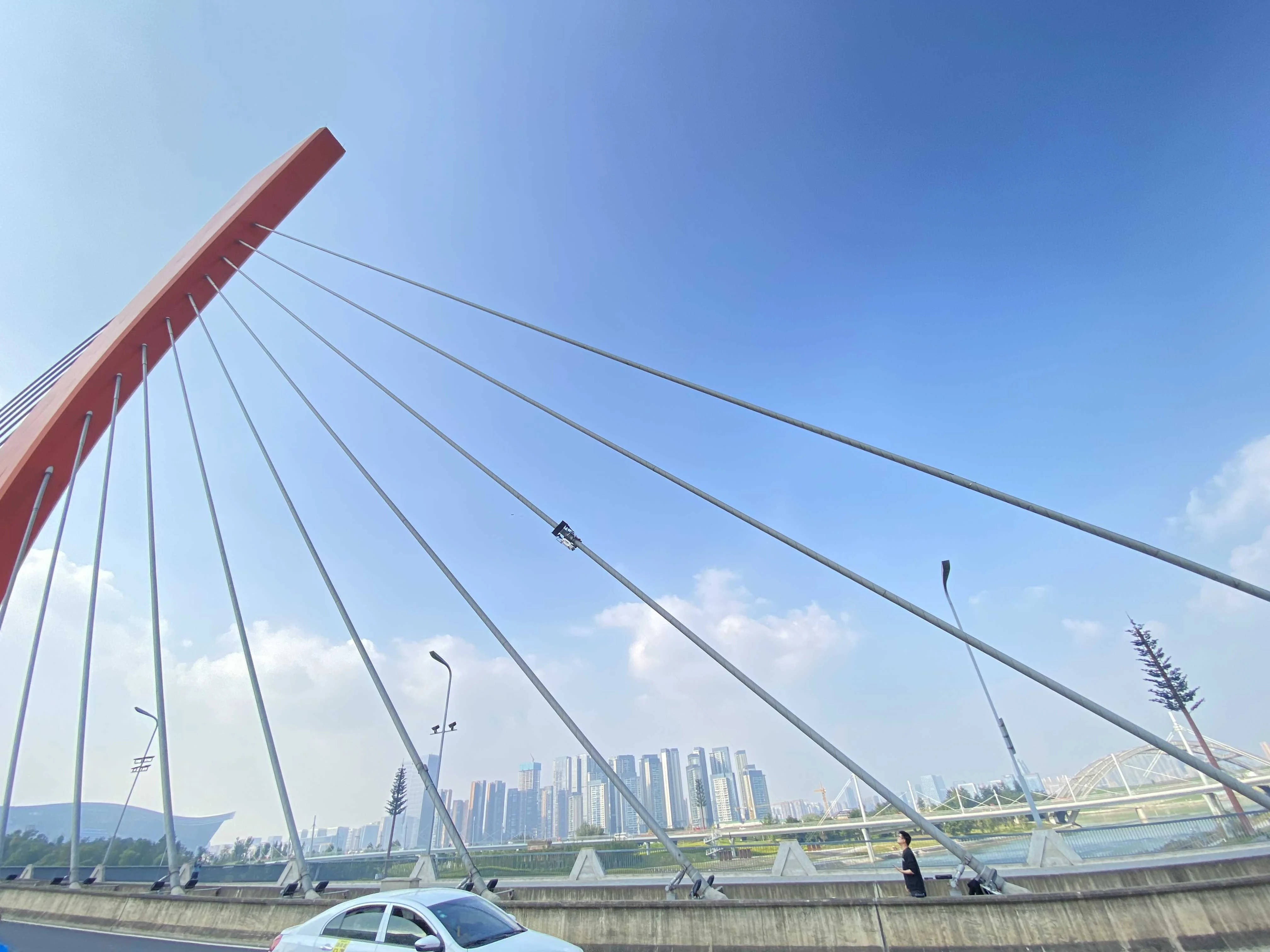

Case 1

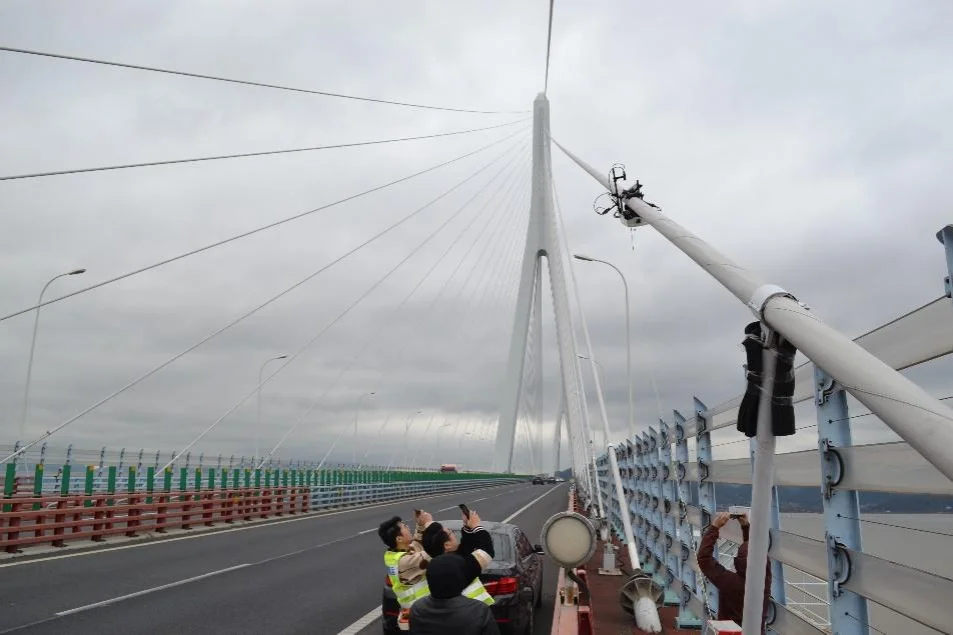

Case 2
